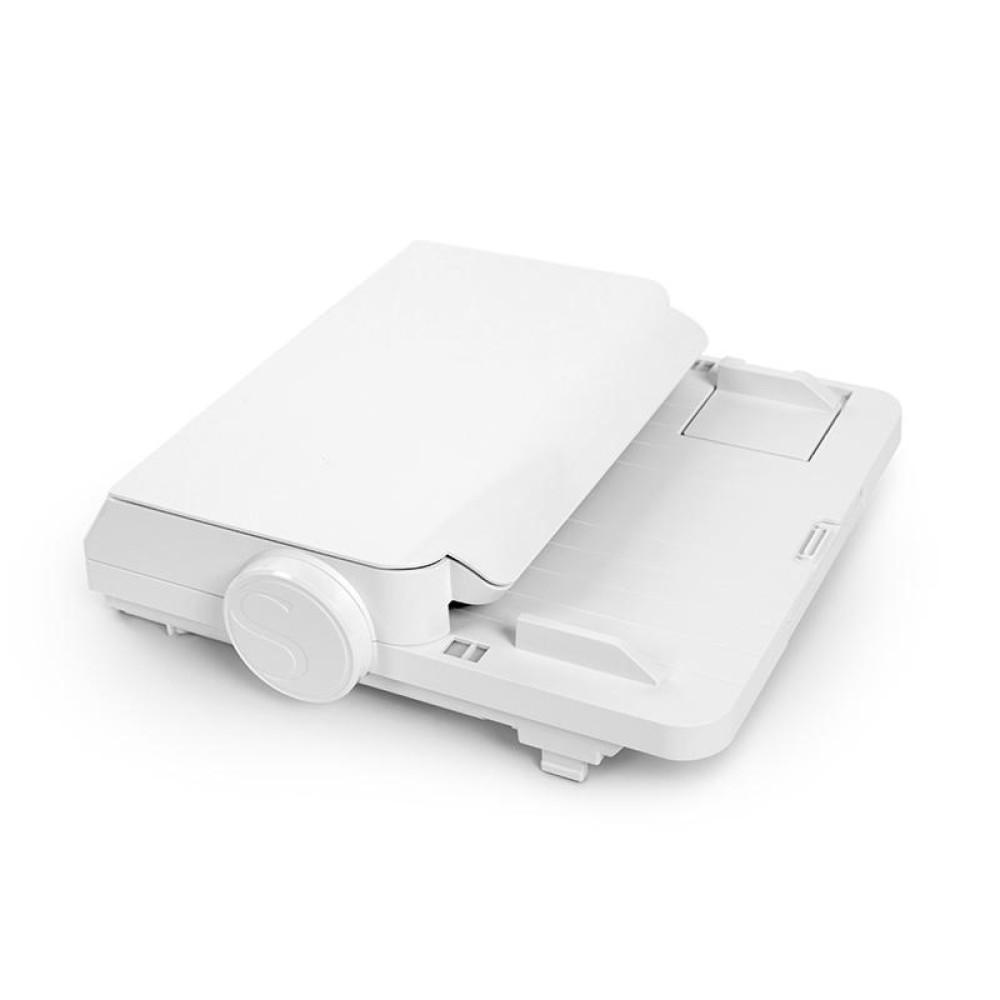

Automatic Paper Feeder
The automatic paper feeder simplifies bulk cutting by automatically loading paper into your Silhouette cutter. Place up to 20 sheets of material in the top tray and set the number of copies to be cut in Silhouette Studio®. The automatic paper feeder then loads each sheet into the cutter and ejects it from the bottom of the loading tray or the back of the cutter for a smooth, floorless cut. Cut the same design multiple times, or send different cutting jobs simultaneously using barcodes.
The automatic paper feeder is compatible with the following cutters:
Portrait 3
Portrait 4
Cameo 4
Cameo 5
Technical Specifications:
Compatible Media Sizes:
A4: 8.27 in x 11.7 in (210 mm x 297 mm)
US Letter: 8.5 in x 11 in (216 mm x 279 mm)
Compatible Media Types: Label paper, photo paper, and other stiff paper materials. (Do not use coiled or statically charged media)
Compatible Media Thickness: 0.18 mm ~ 0.26 mm
Maximum Material Capacity: 20* / ≥ 4.4 mm (*Maximum capacity varies depending on media thickness.)
Compatible Cutting Machines:
Portrait 3
Portrait 4
Cameo 4
Cameo 5
Interface: USB 2.0 High Speed (No Bluetooth® compatibility)
Unit Dimensions: 10.75 in x 11.1 in x 2.72 in (27.3 cm x 28.2 cm x 6.9 cm)
Unit Weight: 2 lb 8.2 oz (1.14 kg)
Shipping Dimensions: 13 in x 12.5 in x 4.75 in (33 cm x 31.6 cm x 12 cm)
Shipping Weight: 3 lb 7.5 oz (1.6 (kg)
Requires Silhouette Studio® version 4.5.117 or higher
Minimum system requirements: Windows 8.1/10/11 or higher or Mac OS X 10.14 or higher, 2 GHz processor, 4 GB RAM, 2 GB available disk space, USB port, high-speed internet connection (recommended)
Includes:
Leaf feeder
Power cable
Positioning base
Safety sheet
